Overview |
|

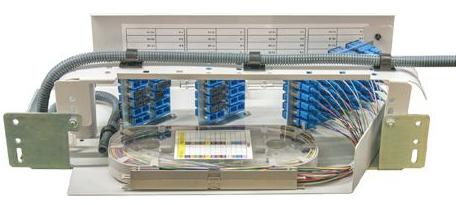

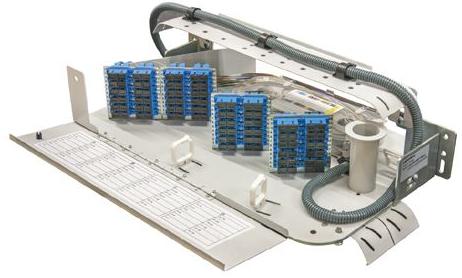

The combined splice& patch units have been developed for high-density applications. When combining splicing and patching in the same Swing-Out module, one can double the density of the frame. This also increases the Optical Fiber Jumper cable bundles between separate splice and patch modules. The modular adapter plate number of splice cassettes can be adjusted for your specific application |
|
Highlights |
|
• Modular designed for 19"/ETSI optical distribution frames |
|
• Swing out splice modules provide max fiber termination possibility with superior cable management |
|
• Up to 144 port capacity in 3U Height |
|
• Ensures minimal cable movement |
|
• Swing out splice modules have a spring loaded locking pin on the right side to prevent accidentally opening of the modules |
|
• The module is automatically locked at the 90 swing out position |
|
• You can open the cover plate to access to the patch field |
|
• The cable storage unit provides excellent cable storage and routing |
|
• Up to 6 splice cassettes and holders can be installed to a single splice module |
|
• Patch cords leave swing out module smoothly run over the radius guide which also provides a fixing point using hook& loop Fasteners |
|
Applications |
|
Carrier&transmission networks in Central offices of Telco’s Outside cabinet applications,FTTX applications,Utility Networks(WAN&MAN) |
|
Prat No. |
Outline Dimension (LxWxH) |
Core Max& Type |
Input Diameter |
|
MAX0307-SC |
508x300x130mm |
96Core SC Duplex adapter |
15mm x 2pcs |
|
MAX0307-LC |
508x300x130mm |
144Core LC Duplex adapter |
15mm x 2pcs |
