Name |

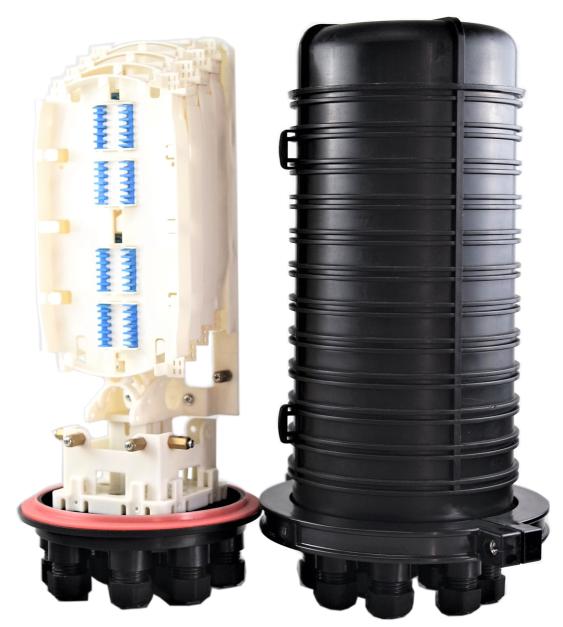

fiber optic splice closure |
|
Part No. |
MAX0501-D |
|
Outline Dimension (LxWxH) |
505x200x200mm |
|
Max Capacity |
Bunchy:288 cores (Ribbon:1152 cores) |
|
Fibers/Tray |
Bunchy:24-36 fibers Ribbon:144,288 fibers |
|
Number of inlet/outlet ports |
9ports 1 big round port and 8pcs small round |
|
Diameter of fiber cable |
Big round port:Ø50mm small round ports:Ø12mm |
|
Material |
PP ABS |
|
Description |
|
• The closure can be used in duct, buried, overhead..etc |
|
• High quality impact material.pp and internal is ABS |
|
• Designed for FTTH with adapter if need. |
|
• Fiber storage with big basket bracket or back bracket |
|
• Modular fiber management system |
|
• Sealing way of cables: mechanical seal. |
|
• Life span:more than 25 years |
|
• IP rating is IP68 |
