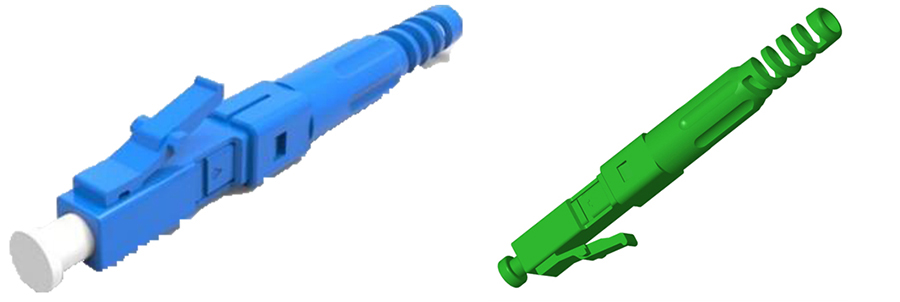

Fiber Optic Fast Connector is used for field-installable optical fiber connector. It can provide Open flow and Precast type of products,whose optical and mechanical specification meets the standard optical fiber connector. it is designed for high quality and high efficiency for installation.the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables. Adapted fiber pre-installed structure, and convenient for field installation.
|
FEATURES
|
|
APPLICATIONS
|
|
|
|
|
|
• Unique bell-shaped boot maintains the mini fiber bend radius
|
|
• Data Centers
|
|
• Precision mechanical alignment insures low insertion loss
|
|
• Local Area Networks
|
|
• Fiber aligned in v-groove through the ceramic ferrule
|
|
• High-Density Applications
|
|
• Low-volatile reliable matching liquid preserved by side cover
|
|
• Interconnects
|
|
• Pre-installed, on-site assembly without end face grinding and consideration
|
|
• Cross-connects
|
|
Items
|
SC Pre-polished type
|
Length 57mm
|
|
Ferrules
|
SM UPC、SM APC
|
MM UPC
|
|
Inner diameter of ferrules
|
125.5 um
|
127.0 um
|
|
Insertion loss
|
@1310nm,≤0.35dB
|
@850nm,≤0.35dB
|
|
Return loss
|
≥50.0dB
|
≥30.0dB
|
|
Working temperature
|
-40℃~+85℃
|
Mating times 500 times
|
|
Storage temperature
|
-40℃~+85℃
|
Fiber cables Ø2-3mm
|
