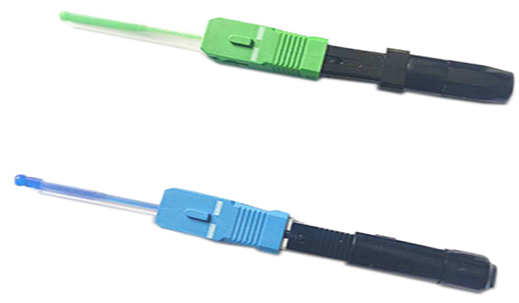

Fast connector hot melt type fiber optic connector fusion splice on connector for 2.0*3.0 drop cable melting type O-fiber connector uses mature melting technology, and transfers the traditional melting point from the O-fiber melting box or melting modular part to the inside of the connector.
|
FEATURES
|
|
APPLICATIONS
|
|
|
|
|
|
• Low insertion loss and back reflection loss
|
|
• CATV
|
|
• Ferrule end surface predomed
|
|
• Active device termination
|
|
• Precision anti-rotation key and corrosion resistant body
|
|
• Telecommunication networks
|
|
• UL-rated plastic housing
|
|
• Metro
|
|
• Boots in a variety of colors
|
|
• Local Area Networks (LANs)
|
|
• Free-floating ceramic ferrule
|
|
• Data processing networks
|
|
|
• Test equipment
|
|
|
• Premise installation
|
|
|
• Wide Area Networks(WANs)
|
|
Items
|
SC Pre-polished type
|
Length 83mm
|
|
Ferrules
|
SM UPC
|
SM APC
|
|
Inner diameter of ferrules
|
125.5 um
|
127.0 um
|
|
Insertion loss
|
@1310nm,≤0.2dB
|
@850nm,≤0.2dB
|
|
Return loss
|
≥50.0dB
|
≥60.0dB
|
|
Working temperature
|
-40℃~+85℃
|
Mating times 500 times
|
|
Storage temperature
|
-40℃~+85℃
|
Fiber cables Ø 0.9/2/3mm
|
