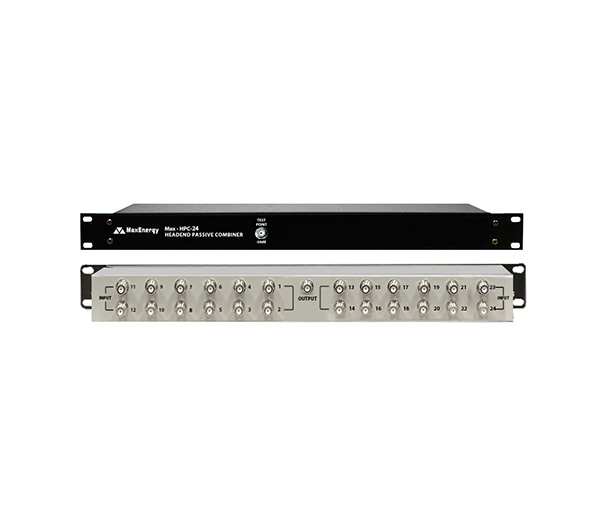

| Name | MAX-HPC-24 | ||||
| No. | 335750 | ||||
| Frequency Range | 45-1000MHz | ||||
| Insertion Loss | 24 ±2dB | ||||
| Isolation |
30dB |
||||
| Output & Input Impedence | 75 Ohm | ||||
| Output & Input Return Loss | ≥12dB | ||||
| Output to Test Insertion Loss | 30 ±2dB | ||||
|
Description |
|||||
|
• Available in 8, 12 & 24 Port models • Superior Isolation & Input / Output Return loss performance • Suitable for digital applications in the 45-1000MHz range • -30dB Test Point • 75 Ohm Impedence |
