The duplex LC connector for 2.0mm round cable, which allows the polarity to be switched from A-B to A-A without any tools. |
|
FEATURES |
|
• Uniboot with a Single Housing |
|
• Unique Push-Pull Design and Function |
|
• Easy to Assemble and Use |
|
• Low Insertion Loss and Back Reflection |
|
• High Repeatability and Reliability |
|
|
|

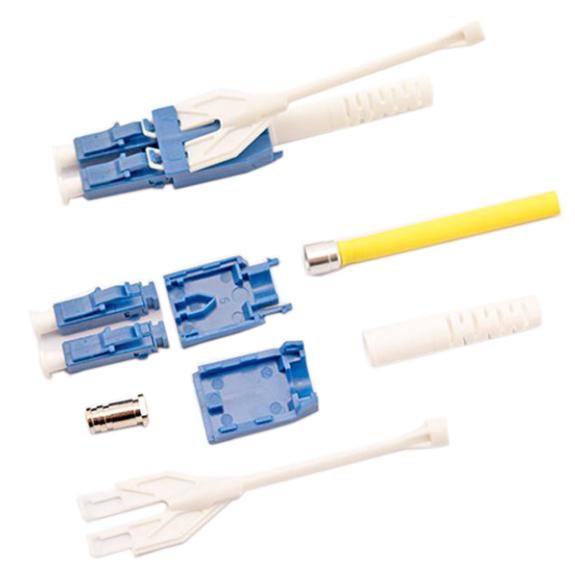

Part No.:MAX0401 |
|
LC Uniboot (Switch Polarity) |
|
APPLICATIONS |
|
• Data Centers |
|
• Local Area Networks |
|
• High-Density Applications |
|
• Interconnects |
|
• Cross-connects |
|
|
|

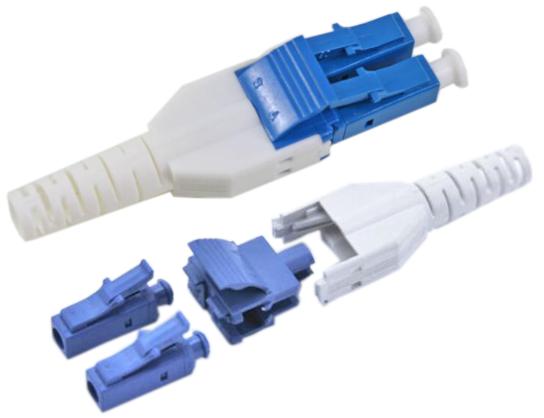

Part No.:MAX0402 |
|
LC Uniboot Push-Pull(Switch Polarity) |
|
Mode |
Single mode |
Multimode |
||
|
Polish |
UPC |
APC |
|
PC |
|
Insertion Loss |
≤0.30dB |
≤0.20dB |
|
≤0.20dB |
|
Return Loss |
≥50dB |
≥60dB |
|
≥30dB |
|
Test Wavelength |
1310/1550nm |
|
|
850/1310nm |
|
Durability(500 Matings) |
≤0.2dB |
|
|
|
|
Operating Temperature |
-40℃~+60℃ |
|
|
|
|
Storage Temperature |
-45℃~+85℃ |
|
|
|
|
Fire Resistant |
IEC 60794-2-30 |
|
|
|
|
Standards-Compliant |
ROHS,IEC and GR-326 |
|
|
|
