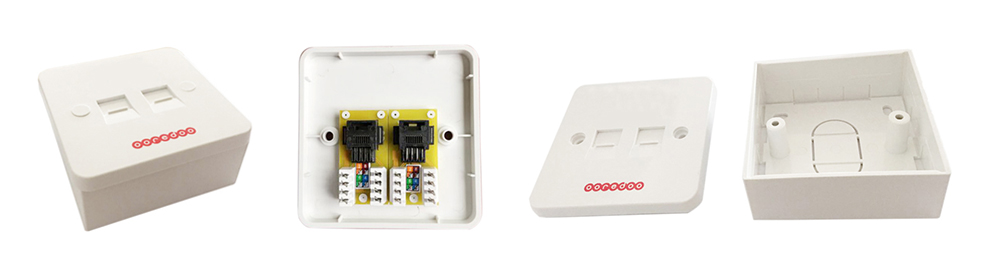

| Name | FTTH Wall mounting terminal box | ||||
| Part No. | MAX0120-62 | ||||
| Outline Dimension (LxWxH) |
Socket :86x86x8mm Back box :86x86x32mm |
||||
| Port Type | 1 port CAT6 | ||||
| Installation | Wall Mount (Indoor) | ||||
| Color | White | ||||
| Material | ABS | ||||
|
Features |
|||||
| •RJ45 sockets : 8 position, 8 contact.Gold plated contacts | |||||
| •Install on the wall or pole | |||||
|
•Ability to allow cables to enter from rear or bottom of the unit Wire termination : Krone style IDC -colour coded to T568B |
|||||
| •Accessories:Supplied with cable tie(s), fixing screws for standard backboxes and anti-tamper screw caps |
| Part No. | Description | ||||
| MAX0120-62 | Cat6 Dualport socket with 32mm back box | ||||
| MAX0120-62-S | Cat6 Dualport socket | ||||
| MAX0120-62-B | 32mm back box | ||||
