Name |

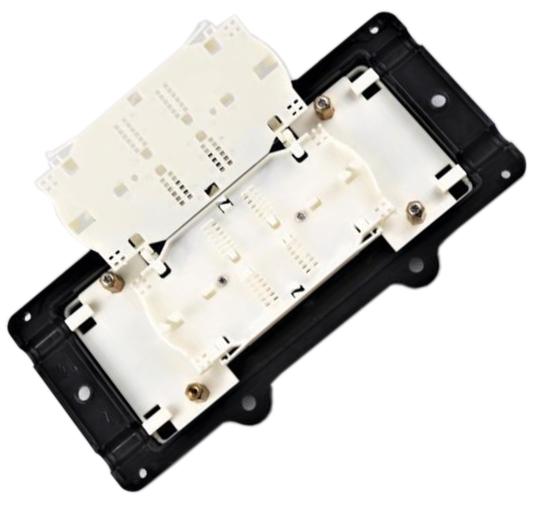

fiber optic splice closure |
|
Part No. |
MAX0503-F |
|
Outline Dimension (LxWxH) |
302x133x55mm |
|
Max Capacity |
48 fibers |
|
Fibers/Tray |
12 cores / 24 cores |
|
Number of inlet/outlet ports |
4ports (2 inlet and 2 outlet) |
|
Diameter of fiber cable |
6mm-13mm |
|
Material |
ABS |
|
Description |
|
• Mechanical seal,Protection grade : IP68 |
|
• Installation method : Aerial,Piple line.Wall-mounting,direct-burried |
|
• Enough space for the storage of uncut cable,easy in installation |
|
• Mini |
