Name |

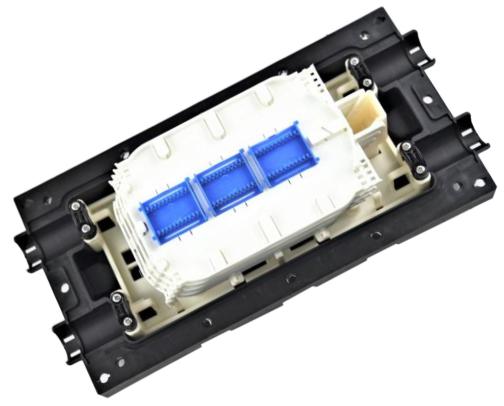

fiber optic splice closure |
|
Part No. |
MAX0504-F |
|
Outline Dimension (LxWxH) |
390x198x96mm |
|
Max Capacity |
Bunchy:144 cores |
|
Fibers/Tray |
12 cores / 24 cores |
|
Number of inlet/outlet ports |
4ports (2 inlet and 2 outlet) |
|
Diameter of fiber cable |
9mm-22mm |
|
Material |
ABS |
|
Description |
|
• The closure can be used in duct, buried, overhead..etc |
|
• High quality impact material.pp and internal is ABS |
|
• Use silicon rubber seal material ,not need replace when open. |
|
• Fiber storage with bracket |
|
• Modular fiber management system |
|
• Sealing way of cables: mechanical seal. |
|
• Life span:more than 25 years |
|
• IP rating is IP68 |
