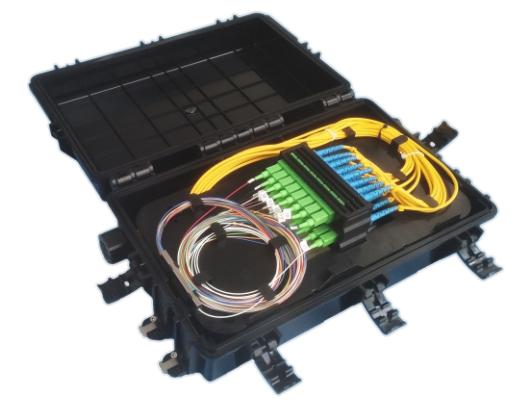

MAX0506-F

MAX0506-F

Name
fiber optic splice closure
Part No.
MAX0506-F
Outline Dimension (LxWxH)
335x220x100mm
Max Capacity
Bunchy:144 cores
Fibers/Tray
24 cores
Number of inlet/outlet ports
2ports
Diameter of fiber cable
7mm-15mm
Material
ABS

Description
• This splice closure is multi-function and can be used both for the protection of various straight through and branching
• Advanved internal structure design
• Easy to re-enter,in never requires re-entry tool it
• The closure is spacious enough for winding and storing fibers
• The splice tray are designed in slide-in -lock and its opening angle is about 90°
• Installation method : Aerial,Piple line.Wall-mounting,direct-burried,pole-mounting,hand hole-mounting
• Easy in installation
• IP rating is IP68
