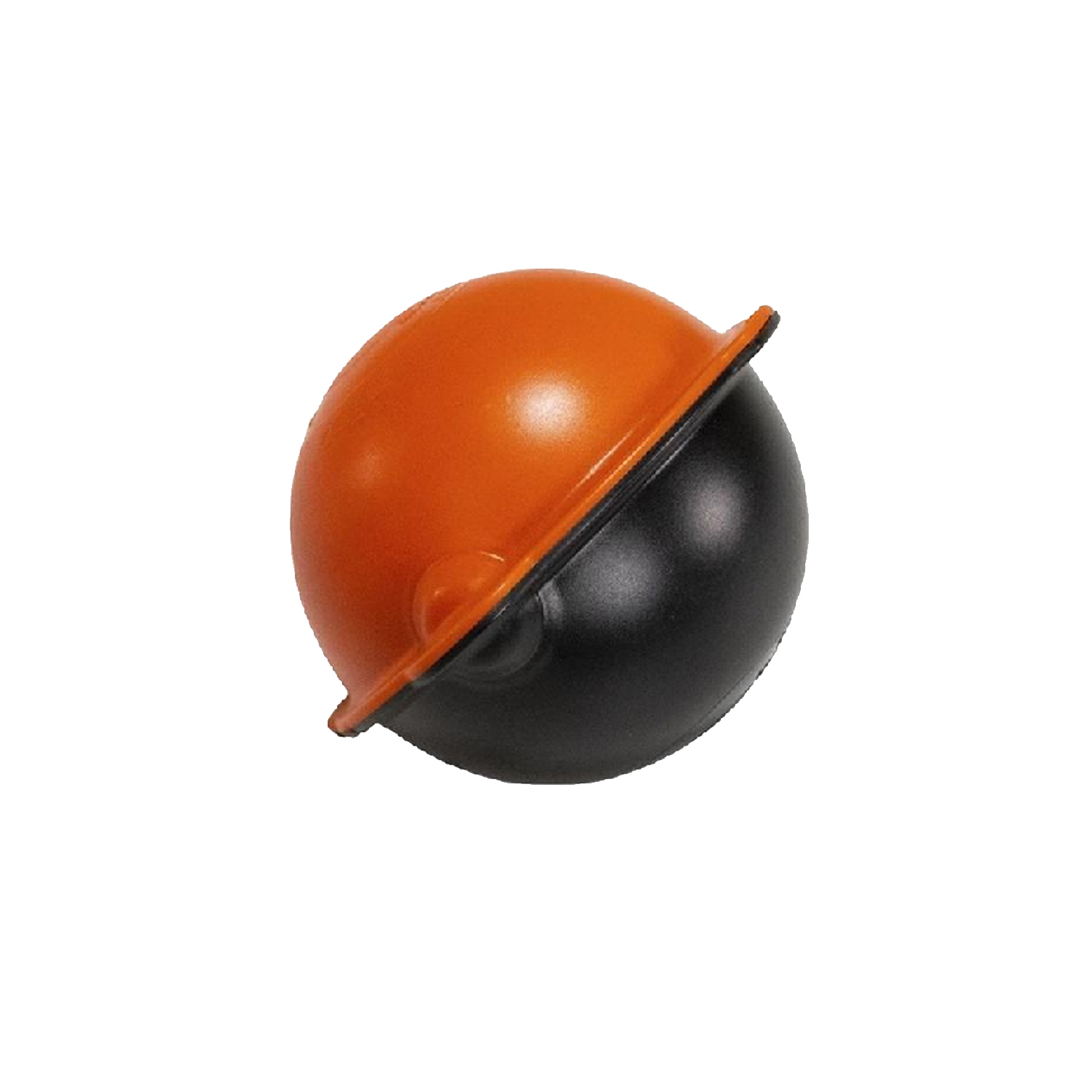

Product Advantages
·No harmful fluid inside.
·Detection range up to <1.5m.
·High location precision marker ball.
·For manholes or direct buried installation.
·Self orientation RF reflector ensures best detection range and accuracy.
·The induction coil is suspended on the built-in antifreeze and can be kept horizontally upward.
| Construction | Description |
| Product Type | EX.ID version |
| Frequency | 77.0kHZ |
| Identification Depth | 1.5m |
| Maximum Detectable Depth | 1.5 m (EX.ID version) |
| Service life | 50 years |
| Diameter | Φ120mm丨4.724in |
| Height | 115mm丨4.528in |
| Material | HDPE |
| Weight | 400g(±20g) |
| Protection Level | IP68 |
| Marker Ball Distance | Maximum distance 50 m |
| Storage Temperature | -40℃ to +70 ℃ |
| Operating Temperature | -40℃ to +60 ℃ |
| Drop Test | Can withstand a 1.5m drop to the concrete floor |
| Stress Resistance | Withstands 400Kg pressure, the ball has no permanent damage, no cracks and leaks, and no damage to its electronic tag function |
| Detector Compatibility | ED8000 or other detectors with the same frequency (for example: 3M Dynatel series) can read |
| Packaging Info. | 30pcs/cnt 12.75kg 0.043cbm(560*225*340mm） 18cnt/pallet 247kg 2.016cbm(2100*800*1200mm） |
