| Name |
FTTH Wall mounting terminal box 4ports |
||||
| Part No. | MAX0104-2 | ||||

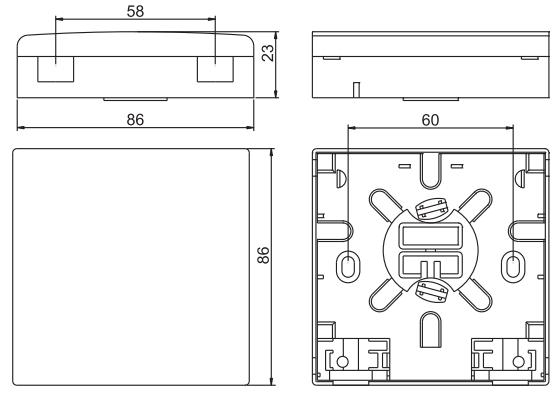

| Outline Dimension (LxWxH) | 86x86x23mm | ||||
| Port Type | 2ports SC Simplex adapter | ||||
| 2ports LC Duplex adapter | |||||
| Installation | Wall Mount (Indoor) | ||||
| Color | White | ||||
| Material | ABS | ||||
|
Features |
|||||
| •86 standard size | |||||
| •Good fit for drop cable | |||||
|
•High quality plastics |
| Part No. | Description | ||||
| MAX0104-2 | FTTH wall box without adapter and pigtail | ||||
|
MAX0104-2-2SC |
FTTH wall box with 2pcs SC adapter,without pigtail | ||||
|
MAX0104-2-2SC-P |
FTTH wall box with 2pcs SC adapter,with 2pcs pigtail | ||||
|
|
|||||
| MAX0104-2-2LC |
FTTH wall box with 2pcs LC duplex adapter,without pigtail |
||||
| MAX0104-2-2LC-P |
FTTH wall box with 2pcs LC duplex adapter,with 4pcs pigtail |
||||
