| Name |

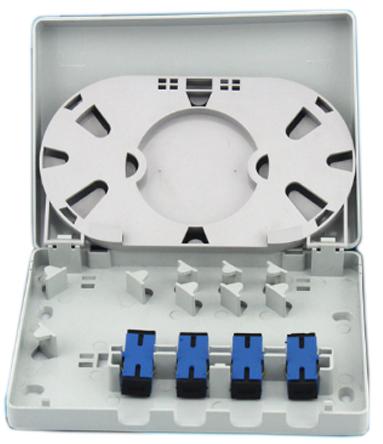

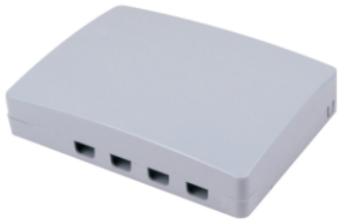

FTTH Wall mounting terminal box 4ports |
||||
| Part No. | MAX0107-4 | ||||

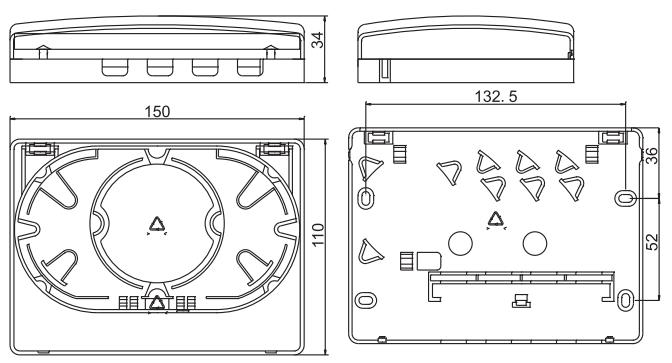

| Outline Dimension (LxWxH) | 150x110x34mm | ||||
| Port Type | 4ports SC Simplex adapter | ||||
| 4ports LC Duplex adapter | |||||
| Installation | Wall Mount (Indoor) | ||||
| Color | White | ||||
| Material | ABS | ||||
|
Features |
|||||
| •Good dustproof | |||||
| •With apart splice tray for easy connection and splice | |||||
|
•High quality plastics |
| Part No. | Description | ||||
| MAX0107-4 | FTTH wall box without adapter and pigtail | ||||
|
MAX0107-4-4SC |
FTTH wall box with 4pcs SC adapter,without pigtail | ||||
|
MAX0104-4-4SC-P |
FTTH wall box with 4pcs SC adapter,with 4pcs pigtail | ||||
|
|
|||||
| MAX0104-4-4LC |
FTTH wall box with 4pcs LC duplex adapter,without pigtail |
||||
| MAX0104-4-4LC-P |
FTTH wall box with 4pcs LC duplex adapter,with 8pcs pigtail |
||||
