| Name |

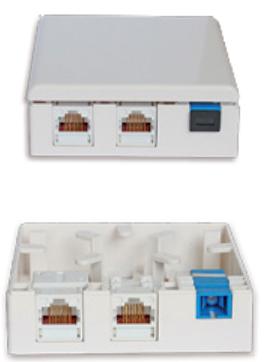

FTTH Wall mounting terminal box 4ports |
||||
| Part No. | MAX0109-3 | ||||
| Outline Dimension (LxWxH) | 86x86x25mm | ||||
| Port Type | 1ports SC Simplex adapter | ||||
| 2ports RJ34/RJ11 | |||||
| Installation | Wall Mount (Indoor) | ||||
| Color | White | ||||
| Material | ABS | ||||
|
Features |
|||||
| •It be used for wall mounted and desktop mounted applications | |||||
| •Suitable for 1xSC simplex or 1xLC duplex adapter and 2xRJ45 | |||||
|
•Ability to allow cables to enter from rear or bottom of the unit |
|||||
|
•All fibres are positively managed to maintain a 30mm minimun bend radius |
|||||
|
•Optional Removable rear entry cable management |
|||||
|
•Flip tray to allow access to connectorised tails and cable entry |
| Part No. | Description | ||||
| MAX0109-3 | FTTH wall box without adapter and pigtail and RJ45/RJ11 | ||||
|
MAX0109-3-1SC |
FTTH wall box with 1pcs SC Simplex adapter,without pigtail | ||||
|
MAX0109-3-1SC-P |
FTTH wall box with 1pcs SC Simplex adapter,with 1pcs pigtail | ||||
|
|
|||||
| MAX0109-3-1SC-PR |
FTTH wall box with 1pcs SC Simplex adapter,with 1pcs pigtail,with 2xRJ45 |
||||
| MAX0109-3-1LC |
FTTH wall box with 1pcs LCDuplex adapter,without pigtail |
||||
|
MAX0109-3-1LC-P |
|
FTTH wall box with 1pcs LC Duplex adapter,with 2pcs pigtail |
|||
|
MAX0109-3-1LC-PR |
|
FTTH wall box with 1pcs LC Duplex adapter,with 2pcs pigtail,with 2xRJ45 |
|||
