| Name |

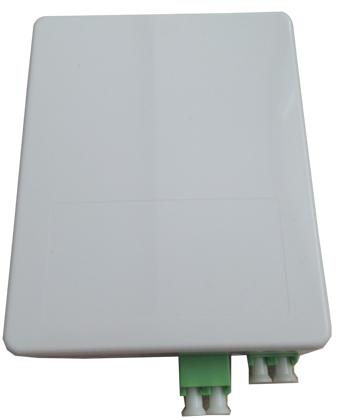

FTTH Wall mounting terminal box 4ports |
||||
| Part No. | MAX0106-2 | ||||

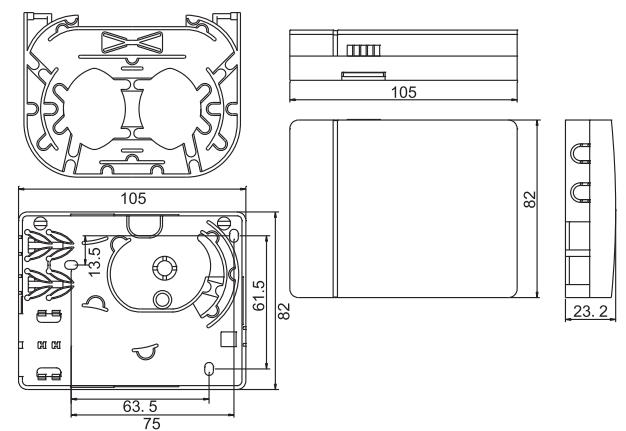

| Outline Dimension (LxWxH) | 105x82x23.2mm | ||||
| Port Type | 2ports SC Simplex adapter | ||||
| 2ports LC Duplex adapter | |||||
| Installation | Wall Mount (Indoor) | ||||
| Color | White | ||||
| Material | ABS | ||||
|
Features |
|||||

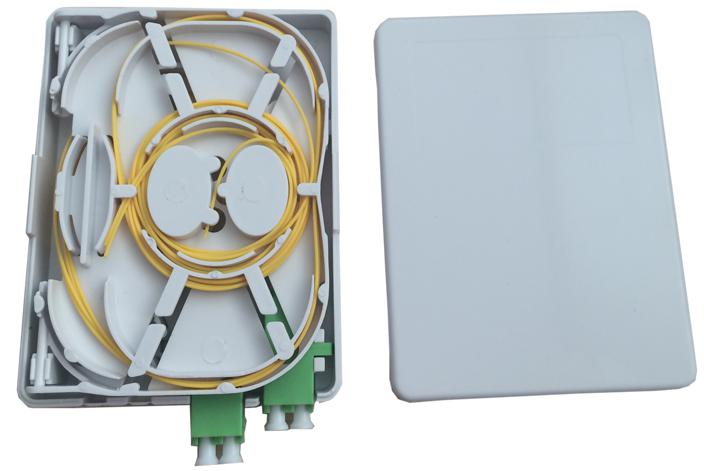

| •With apart splice tray for easy connection and splice | |||||
| •High quality plastics | |||||
|
•Expediently installation |
| Part No. | Description | ||||
| MAX0106-2 | FTTH wall box without adapter and pigtail | ||||
|
MAX0106-2-2SC |
FTTH wall box with 2pcs SC adapter,without pigtail | ||||
|
MAX0106-2-2SC-P |
FTTH wall box with 2pcs SC adapter,with 2pcs pigtail | ||||
|
|
|||||
| MAX0106-2-2LC |
FTTH wall box with 2pcs LC duplex adapter,without pigtail |
||||
| MAX0106-2-2LC-P |
FTTH wall box with 2pcs LC duplex adapter,with 4pcs pigtail |
||||
