| Name |

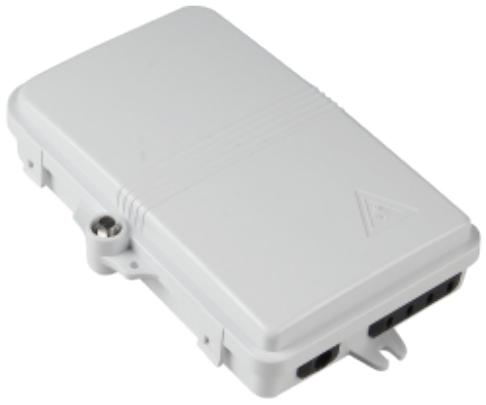

FTTH Wall mounting terminal box 4ports |
||||
| Part No. | MAX0201-4 | ||||

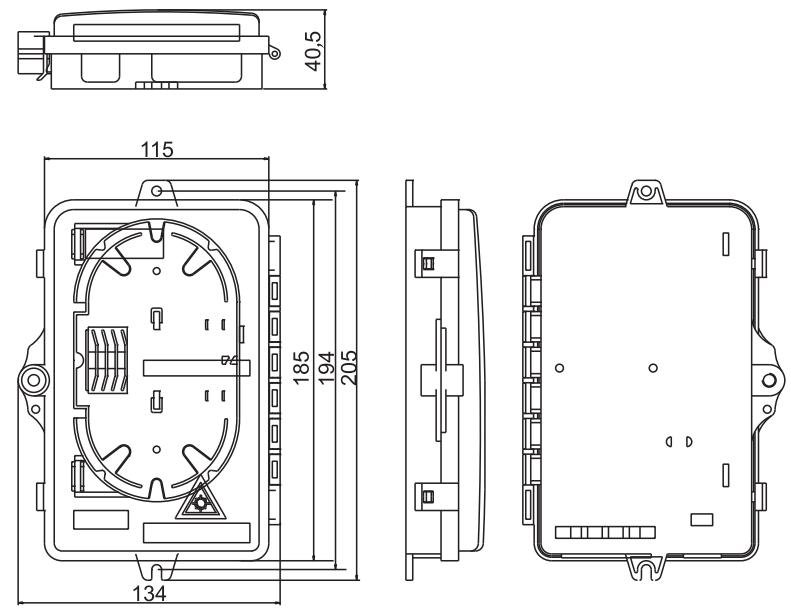

| Outline Dimension (LxWxH) | 205x134x40.5mm | ||||
| Port Type | 4ports SC/ST/FC Simplex adapter | ||||
| 4ports LC Duplex adapter,1:4 Mini PLC Splitter | |||||
| Installation | Wall Mount (Indoor) | ||||
|
IP Rate |
|
IP65 |
|||
|
Cable Entries |
|
Supporting uncut |
|||
| Color | White | ||||
| Material | ABS | ||||
|
Features |
|||||
| •FTTH,LAN network and CATV system application | |||||
| •1pcs glands and 4pcs output drop cable | |||||
|
•With lock , good safe |
|||||
|

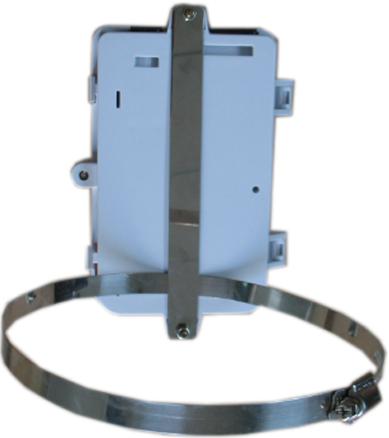

•Install on the wall or pole |
|||||
|
•Available for 1*2/1*4 PLC Splitter. Design to protect PLC splitter. |
|||||
| Part No. | Description | ||||
| MAX0201-4 | FTTH wall box without adapter and pigtail | ||||
|
MAX0201-4-4SC |
FTTH wall box with 4pcs SC Simplex adapter,without pigtail | ||||
|
MAX0201-4-4SC-P |
FTTH wall box with 4pcs SC Simplex adapter,with 4pcs pigtail | ||||
|
|
|||||
|
MAX0201-4-4SF |
FTTH wall box with 4pcs ST/FC Simplex adapter,without pigtail |
||||
| MAX0201-4-4SF-P |
FTTH wall box with 4pcs ST/FC Simplex adapter,with 4pcs pigtail |
||||
|
MAX0201-4-2S |
|
FTTH wall box with 4pcs SC Simplex adapter,with 1:2 Mini PLC Splitter |
|||
|
MAX0201-4-4S |
|
FTTH wall box with 4pcs SC Simplex adapter,with 1:4 Mini PLC Splitter |
|||
|
MAX0201-4-4LC |
|
FTTH wall box with 4pcs LC Duplex adapter,without pigtail |
|||
|
MAX0201-4-4LC-P |
|
FTTH wall box with 4pcs LC Duplex adapter,with 8pcs pigtail |
|||
