| Name |
FTTH Wall mounting terminal box 4ports |
||||
| Part No. | MAX0203-8 | ||||

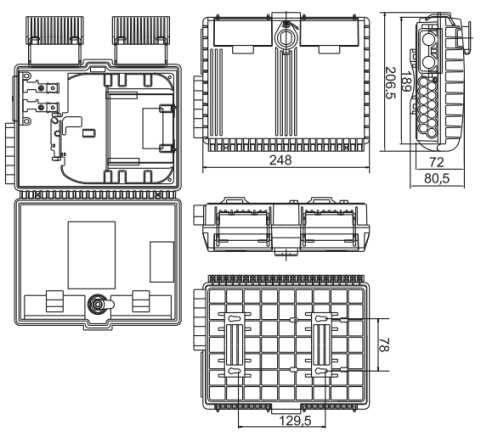

| Outline Dimension (LxWxH) |
248x206.5x80.5mm |
||||
| Port Type | 1:8 PLC Splitter | ||||
|
|
|||||
| Installation | Wall Mount (Indoor) | ||||
|
IP Rate |
|
IP65 |
|||
|
Cable Entries |
|
Supporting uncut |
|||
| Color | White | ||||
| Material | ABS | ||||
|
Features |
|||||
| •Close cover is to adopt two flip plate | |||||
| •2pcs glands and 12pcs output drop cable | |||||
|
•With lock , good safe |
|||||
|
•Install on the wall or pole |
|||||
| Part No. | Description | |||
| MAX0203-8 | FTTH wall box without adapter and pigtail | |||
|
MAX0203-8-8SC |
FTTH wall box with 1:8 PLC Splitter |
|||
