| Name |

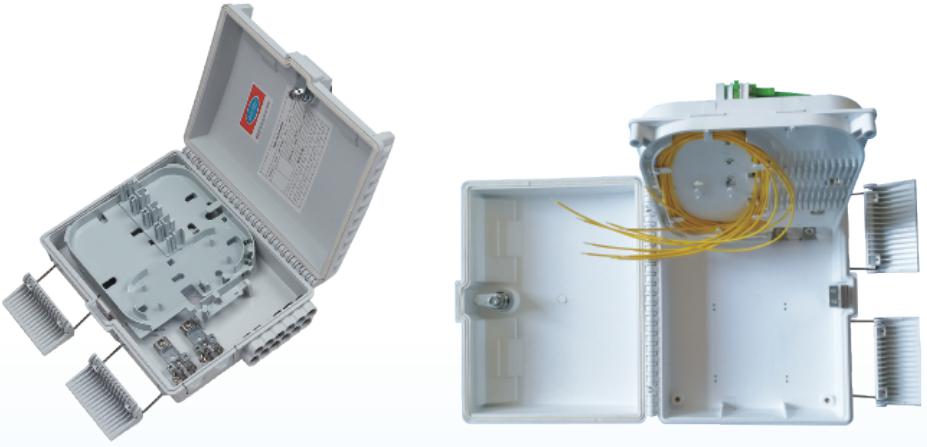

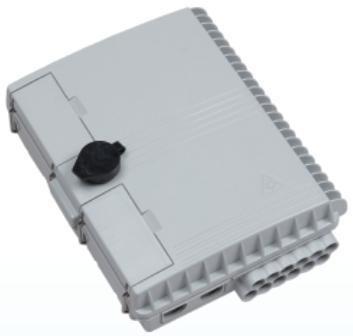

FTTH Wall mounting terminal box 4ports |
||||
| Part No. | MAX0202-12 | ||||

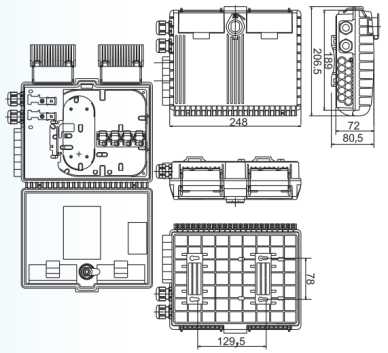

| Outline Dimension (LxWxH) | 248x206.5x80.5mm | ||||
| Port Type | 12ports SC Simplex adapter | ||||
| 12ports LC Duplex adapter | |||||
| Installation | Wall mount (outdoor) | ||||
|
IP Rate |
|
IP65 |
|||
|
Cable Entries |
|
Supporting uncut |
|||
| Color | White | ||||
| Material | ABS | ||||
|
Features |
|||||
|
•Close cover is to adopt two flip plate |
|||||
| •2pcs glands and 12pcs output drop cable | |||||
|
•With lock , good safe |
|||||
|
•Install on the wall or pole |
|||||
| Part No. | Description | ||||
| MAX0202-12 | FTTH wall box without adapter and pigtail | ||||
|
MAX0202-12-12SC |
FTTH wall box with 12pcs SC Simplex adapter,without pigtail | ||||
|
MAX0202-12-12SC-P |
FTTH wall box with 12pcs SC Simplex adapter,with12pcs pigtail | ||||
|
|
|||||
| MAX0202-12-12LC |
FTTH wall box with 12pcs LC Duplex adapter,without pigtail |
||||
| MAX0202-12-12LC-P |
FTTH wall box with 12pcs LC Duplex adapter,with 24pcs pigtail |
||||
|
|
|
||||
