| Name |

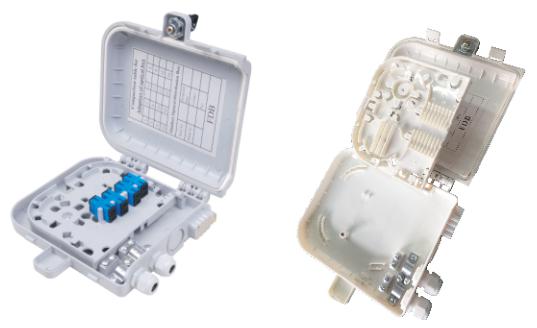

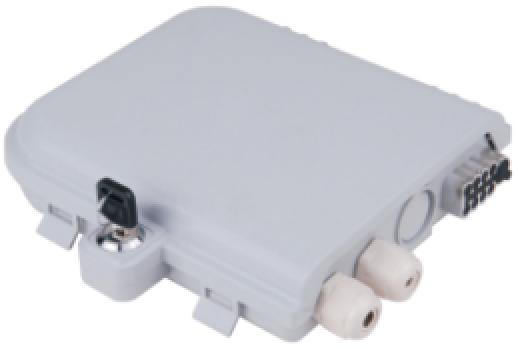

FTTH Wall mounting terminal box 4ports |
||||
| Part No. | MAX0205-8 | ||||

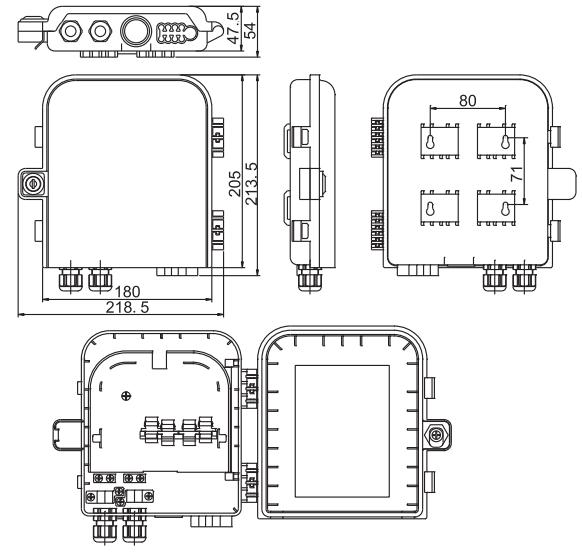

| Outline Dimension (LxWxH) | 213.5x218.5x54mm | ||||
| Port Type | 8ports SC Simplex adapter | ||||
| 8ports LC Duplex adapter,1:8 Mini PLC Splitter | |||||
| Installation | Wall Mount (Indoor) | ||||
|
IP Rate |
|
IP65 |
|||
|
Cable Entries |
|
Supporting uncut |
|||
| Color | White | ||||
| Material | ABS | ||||
|
Features |
|||||
| •Tight fixed the feeder cable jacket | |||||
| •2pcs glands and 8pcs output drop cable,and 1pcs Spare hole | |||||
|
•With lock , good safe |
|||||
|
•Install on the wall or pole |
|||||
|
•High quality plastics |
|||||
| Part No. | Description | ||||
| MAX0205-8 | FTTH wall box without adapter and pigtail | ||||
|
MAX0205-8-8SC |
FTTH wall box with 8pcs SC Simplex adapter,without pigtail | ||||
|
MAX0205-8-8SC-P |
FTTH wall box with 8pcs SC Simplex adapter,with8pcs pigtail | ||||
|
|
|||||
| MAX0205-8-8LC |
FTTH wall box with 8pcs LC Duplex adapter,without pigtail |
||||
| MAX0205-8-8LC-P |
FTTH wall box with 8pcs LC Duplex adapter,with 16pcs pigtail |
||||
|
MAX0205-8-8S |
|
FTTH wall box with 8pcs SC Simplex adapter,with 1:8 Mini PLC Splitter |
|||
|
|
|||||
