Name |
FTTH Wall mounting terminal box 4ports |
||||
Part No. |
MAX0209-12 |
||||

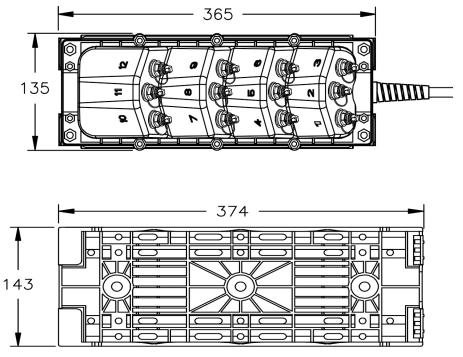

Outline Dimension (LxWxH) | 365x135x110mm | ||||
Port Type | 12ports SC Simplex adapter | ||||
|
12ports LC Duplex adapte |
||||
|
|||||
Installation | Wall Mount (Indoor) | ||||
IP Rate |
|
IP67 |
|||
Color |
Black (color can be customized) |
Description |
The ODVA-DLC connector system, which provides the remote radio between the SFP connection and the base station, used for Telecom applications.This new product to adapt the SFP transceiver provides the most widely in the market, so that end users can choose to meet the specific requirements of the transceiver system. |
Features |
|||||
• High compatibility: Can be assembled ODVA, H connector, Mini SC or power adaptor. | |||||
• Factory sealed or field assembly. | |||||
• Strong enough: working under 1200N pulling force long term. |
|||||
• From 2 to 12 ports for single or multi-fiber harsh connector. |
|||||
• Available with PLC or splice sleeve for fiber divide. |
|||||
• Wall-mounting, aerial installation or holding pole installation. |
|||||
• Decreased angle surface and height make sure no connector interfering when operating. |
|||||
• Internal inventory redundant optical fiber, convenient in operation and maintenance. |
|||||
• Optical fiber can be welding or cold, the applicable scope is wide,especially suitable for the use of multi-store and high-rise tenants,easy to install, easy to install. |
|||||
• Suitable adapter : ODVA connector, Mini-SC connector, H connector. |
