| Name |

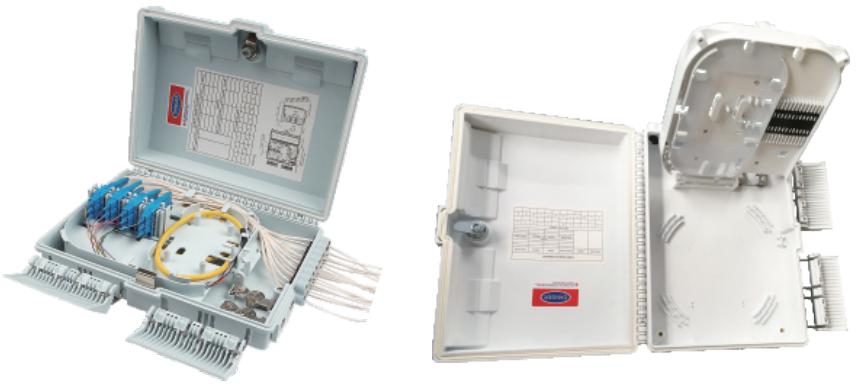

FTTH Wall mounting terminal box 4ports |
||||
| Part No. |
MAX0207-16 |
||||

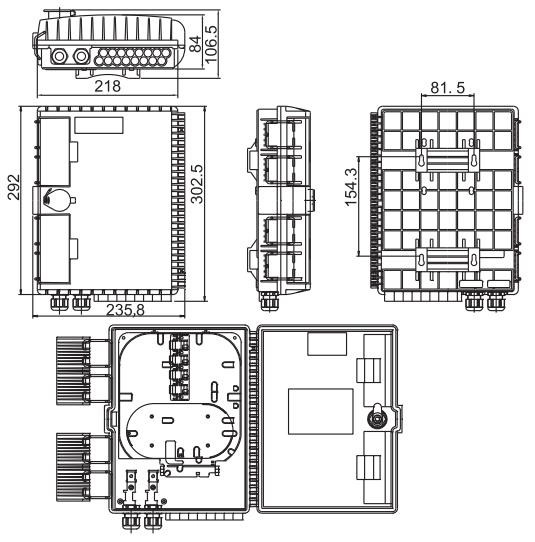

| Outline Dimension (LxWxH) | 302x225x75mm | ||||
| Port Type | 16ports SC Simplex adapter | ||||
| 16ports LC Duplex adapter,1:16 Mini PLC Splitter | |||||
| Installation | Wall Mount (Indoor) | ||||
|
IP Rate |
|
IP65 |
|||
|
Cable Entries |
|
Normal |
|||
| Color | White | ||||
| Material | ABS | ||||
|
Features |
|||||
|
•Close cover is to adopt two flip plate |
|||||
| •Tight fixed the feeder cable jacket | |||||
|
•With lock , good safe |
|||||
|
•Install on the wall or pole |
|||||
| Part No. | Description | ||||
| MAX0207-16 | FTTH wall box without adapter and pigtail | ||||
|
MAX0207-16-16SC |
FTTH wall box with 16pcs SC Simplex adapter,without pigtail | ||||
|
MAX0207-16-16SC-P |
FTTH wall box with 16pcs SC Simplex adapter,with16pcs pigtail | ||||
|
|
|||||
| MAX0207-16-16LC |
FTTH wall box with 16pcs LC Duplex adapter,without pigtail |
||||
| MAX0207-16-16LC-P |
FTTH wall box with 16pcs LC Duplex adapter,with 32pcs pigtail |
||||
|
MAX0207-16-16S |
|
FTTH wall box with 16pcs SC Simplex adapter,with 1:16 Mini PLC Splitter |
|||
|
|
|||||
