| Name |

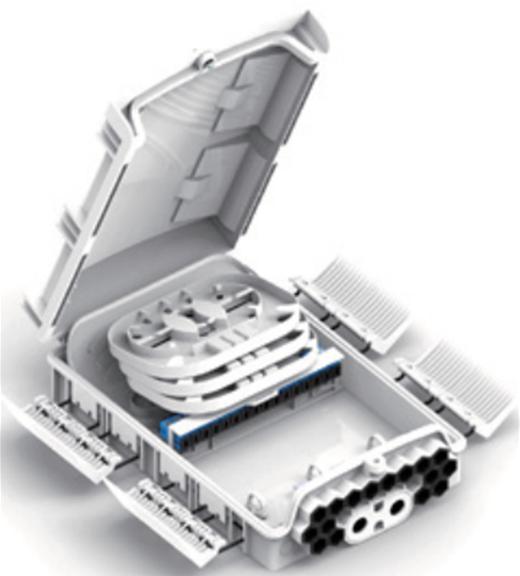

FTTH Wall mounting terminal box 4ports |
||||
| Part No. |
MAX0208-24 |
||||
| Outline Dimension (LxWxH) | 335x210x95mm | ||||
| Port Type | 24ports SC Simplex adapter | ||||
|
|
24ports LC Duplex adapte |
||||
|
2pcs 1:8 / 1pcs 1:16 Mini PLC Splitte |
|||||
| Installation | Wall Mount (Indoor) | ||||
|
IP Rate |
|
IP65 |
|||
|
Cable Entries |
|
Supporting uncut |
|||
| Color | White | ||||
| Material | ABS | ||||
|
Description |
|
This distribution box is usde as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.The fiber splicing,splitting,distribution can be done in this box,and meanwhile it provides solid protection and management for the FTTx network building. |
|
Features |
|||||
| • Total enclosed structure | |||||
| • Close cover is to adopt four flip plate | |||||
|
• Tight fixed the feeder cable jacket |
|||||
|
• With lock,good safe |
|||||
|
• Install on the wall or pole |
|||||
|
• High quality plastics |
|||||
|
• Application PON,G-PON,Point to Point |
|||||
|
• Two flap to choose,on is set up the adapter,anoter one is set up module splitter |
| Part No. | Description | ||||
| MAX0208-24 | FTTH wall box without adapter and pigtail | ||||
| MAX0208-24-24SC | FTTH wall box with 24pcs SC Simplex adapter,without pigtail | ||||
|
MAX0208-24-24SC-P |
FTTH wall box with 24pcs SC Simplex adapter,with24pcs pigtail | ||||
|
MAX0208-24-24LC |
FTTH wall box with 24pcs LC Duplex adapter,without pigtail | ||||
|
|
|||||
| MAX0208-24-24LC-P |
FTTH wall box with 24pcs LC Duplex adapter,with 48pcs pigtail |
||||
| MAX0208-24-24S |
FTTH wall box with 24pcs SC Simplex adapter,with 1:16 Mini PLC Splitter |
||||
|
|
|||||
|
|
|||||
